LEO

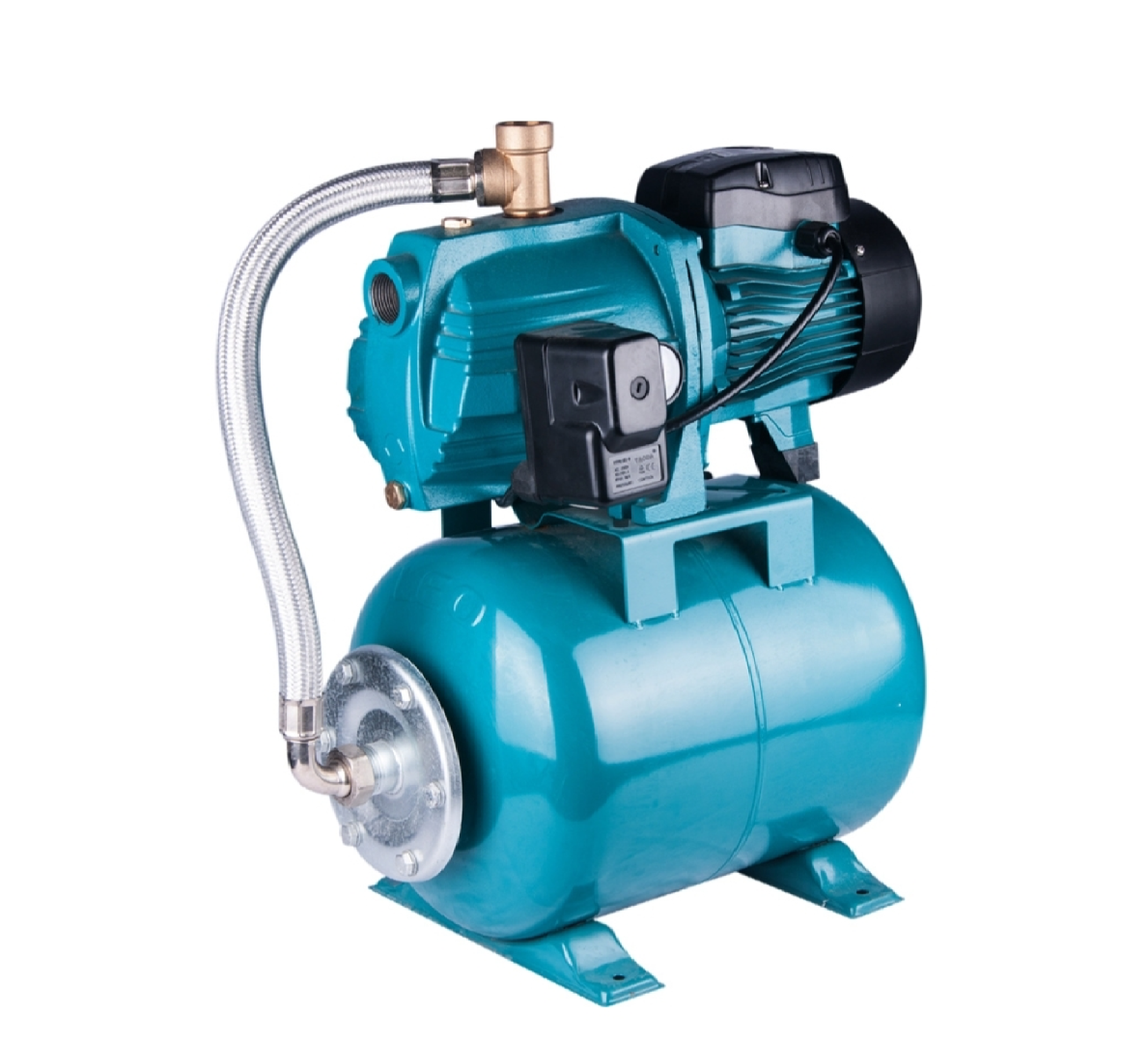

PRESSURE TANK UNIT 2 50L 1HP

₱18,000.00
Shipping calculated at checkout.
LOAJM75A3

Pickup available at Binondo

Usually ready in 2-4 days

PRESSURE TANK UNIT 2 50L 1HP


Features
  • Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
  • Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting running water and supporting equipment etc.
  • Cast Iron Pump Body
  • Cast Iron Pump Body and support under special ant-rust treatment.

Specifications
  • Brass impeller
  • AISI 304 SHAFT
  • Max. Liquid Temperature : +60°C
  • Max. Suction : +9m
  • C&U Bearing
  • Motor with Copper Winding
  • Built-in Thermal Protector for Single Phase Motor
  • Insulation Class : F
  • Protection Class : IPX4
  • Max. Ambient Temparature : +40°C
  • 180-240 V
  • 60HZ
  • QMAX : 10-60L / Min
  • Hmax : 40m
  • Hmin : 23m
  • HP : 1.0
  • 3400rpm
  • IN : 6.0A
  • KW : 0.75
Dimensions
  • width=42.5
  • height=69
  • length=65
Weight
  • 15.5 kgs
